Godwit - 1933 Broads Cruiser

Placeholder Picture

Archive photo of Godwit.

Placeholder Picture
Placeholder Picture

Godwit needs the bottom planks replacing and the keel is a bit loose. There are several holes in the port side, looks like she has been bouncing off a jetty fenderless.

Placeholder Picture

Godwit is as about original as it gets. We plan to restore but keep it as original as possible.

Placeholder Picture

The bunk base on the port side has rotted away due to the holes in her side.

Placeholder Picture

The external Mahogany is bleached so will be stripped back and varnished.

Placeholder Picture

We estimate that she has been out of the water for a couple of years.

Placeholder Picture

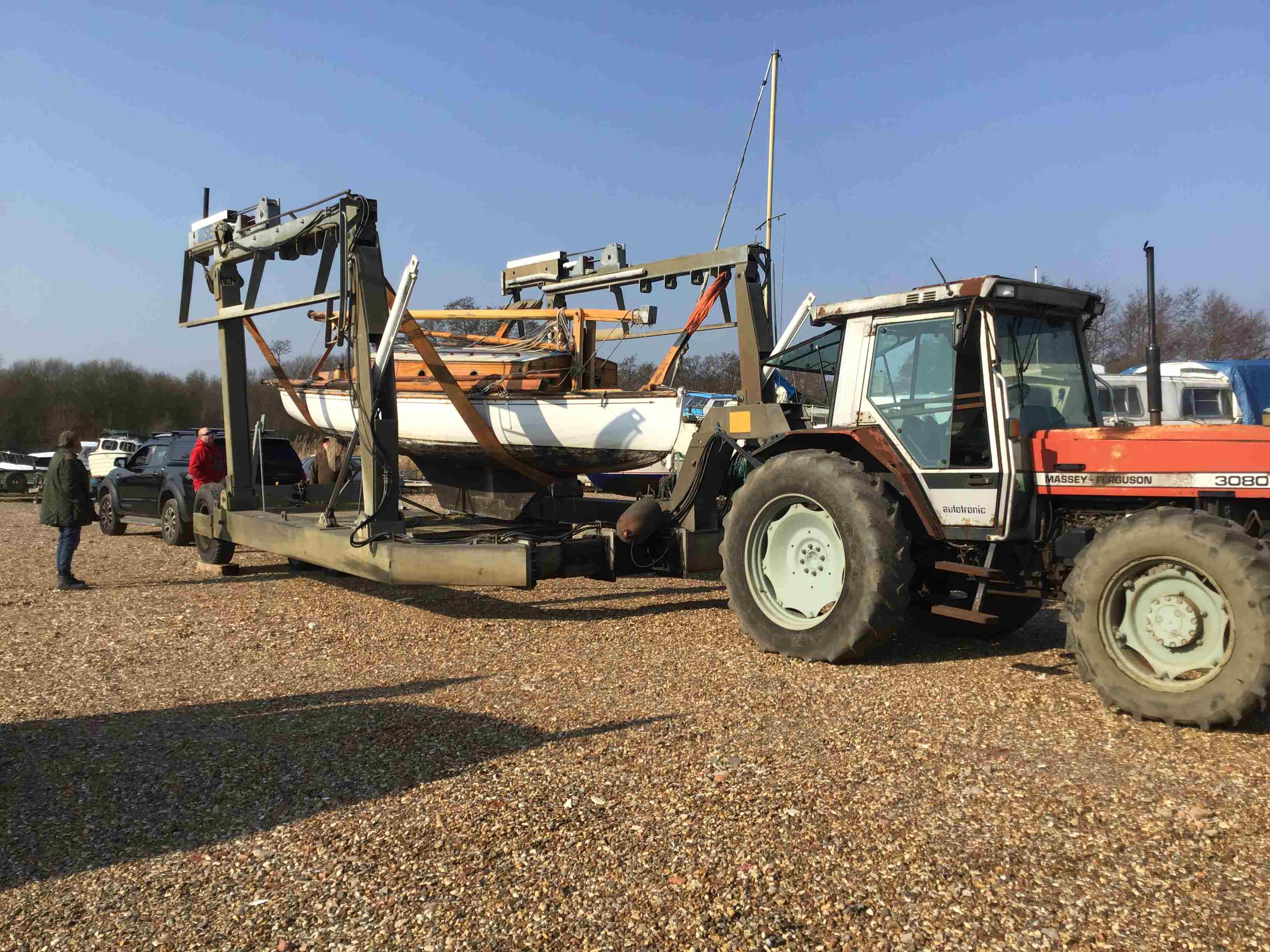

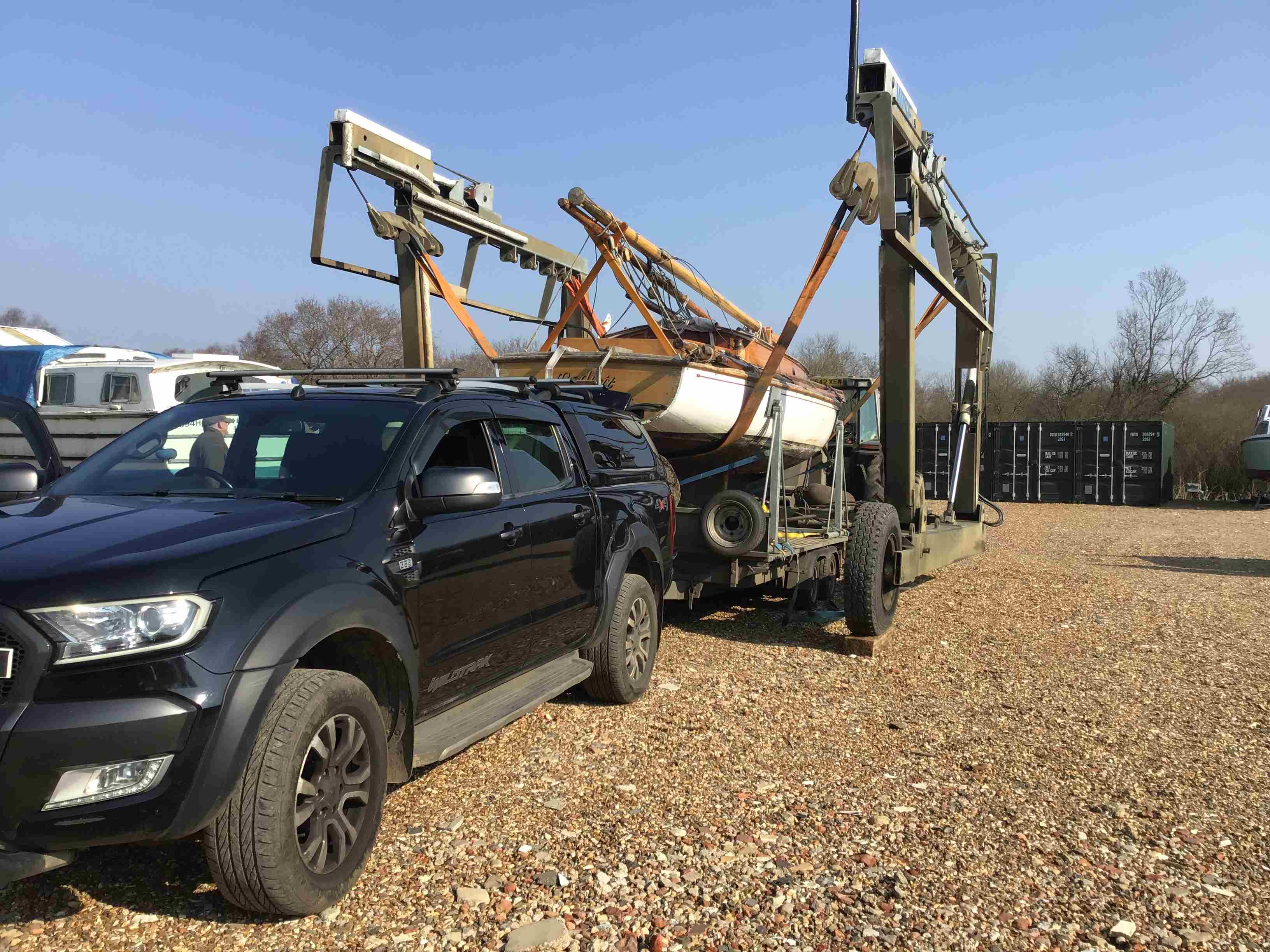

Transport back to Exo Marine.

Placeholder Picture



Placeholder Picture



Placeholder Picture

The cabin roof was removed and all internal panels. The keel was removed. For something that was very loose it put up a fight. Two of the fixings had been replaced as some point and there was not much left of the other two.

Placeholder Picture

The keel will be replaced using Oak.

Placeholder Picture

The tabernacle was removed to reduce the height of the hull after turning.
We replaced five oak frames.

Placeholder Picture

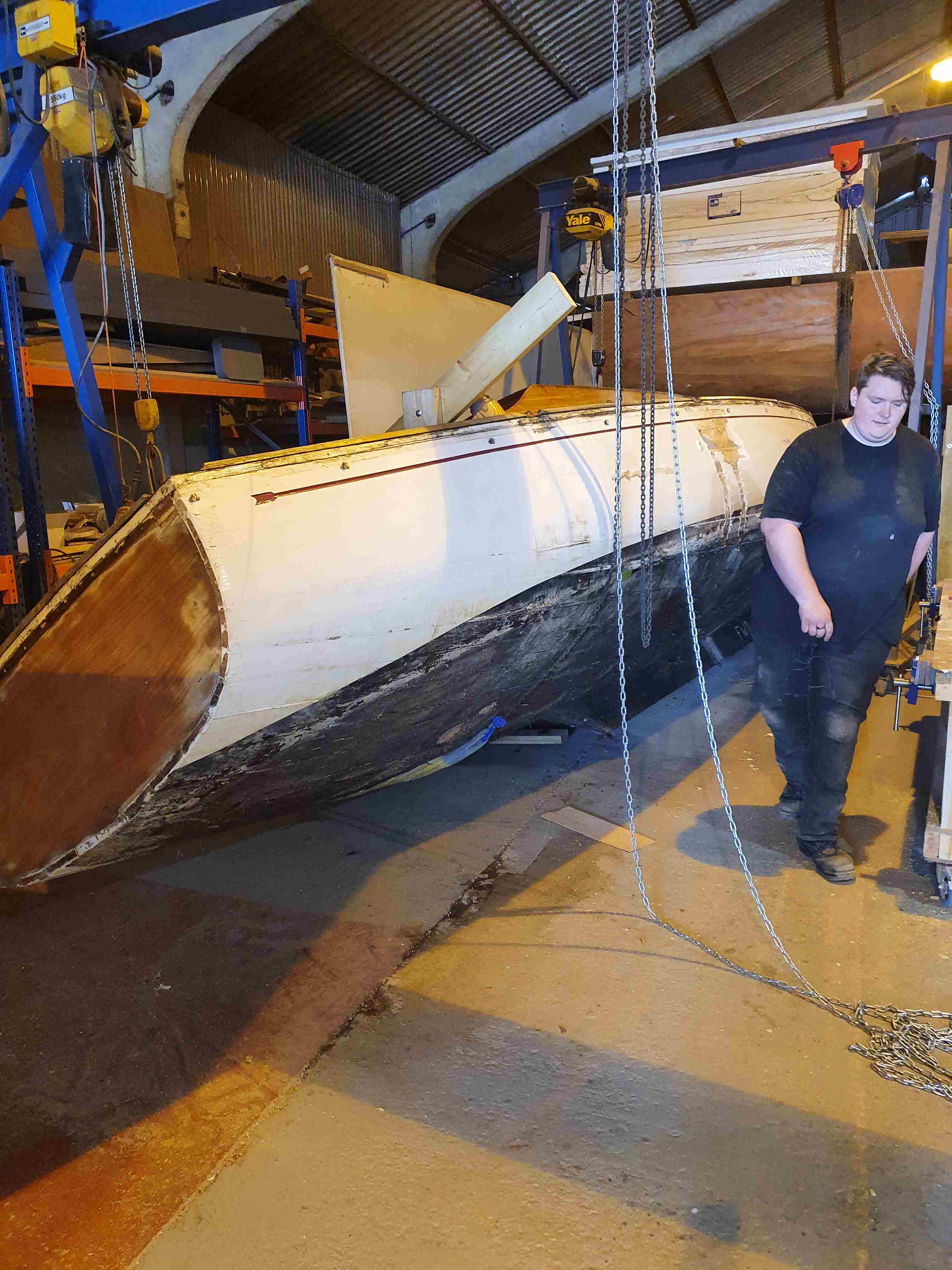

We discussed the pros and cons of turning Godwit to replace the planks. She is in such good condition we decided to go for it. Front was supported across the chain plates, rear through braced frame to beam shelves. We regularly turn 50' catamaran hulls so this was an easy job.

Placeholder Picture



Placeholder Picture



The hull is well supported to prevent hogging.

Placeholder Picture

First planks are removed. As expected there are many repairs that have been made over the years, some good, some botched.

Placeholder Picture

Siberian Larch for the planks.

Placeholder Picture

Excellent quality Larch from Sykes Timber.

Placeholder Picture

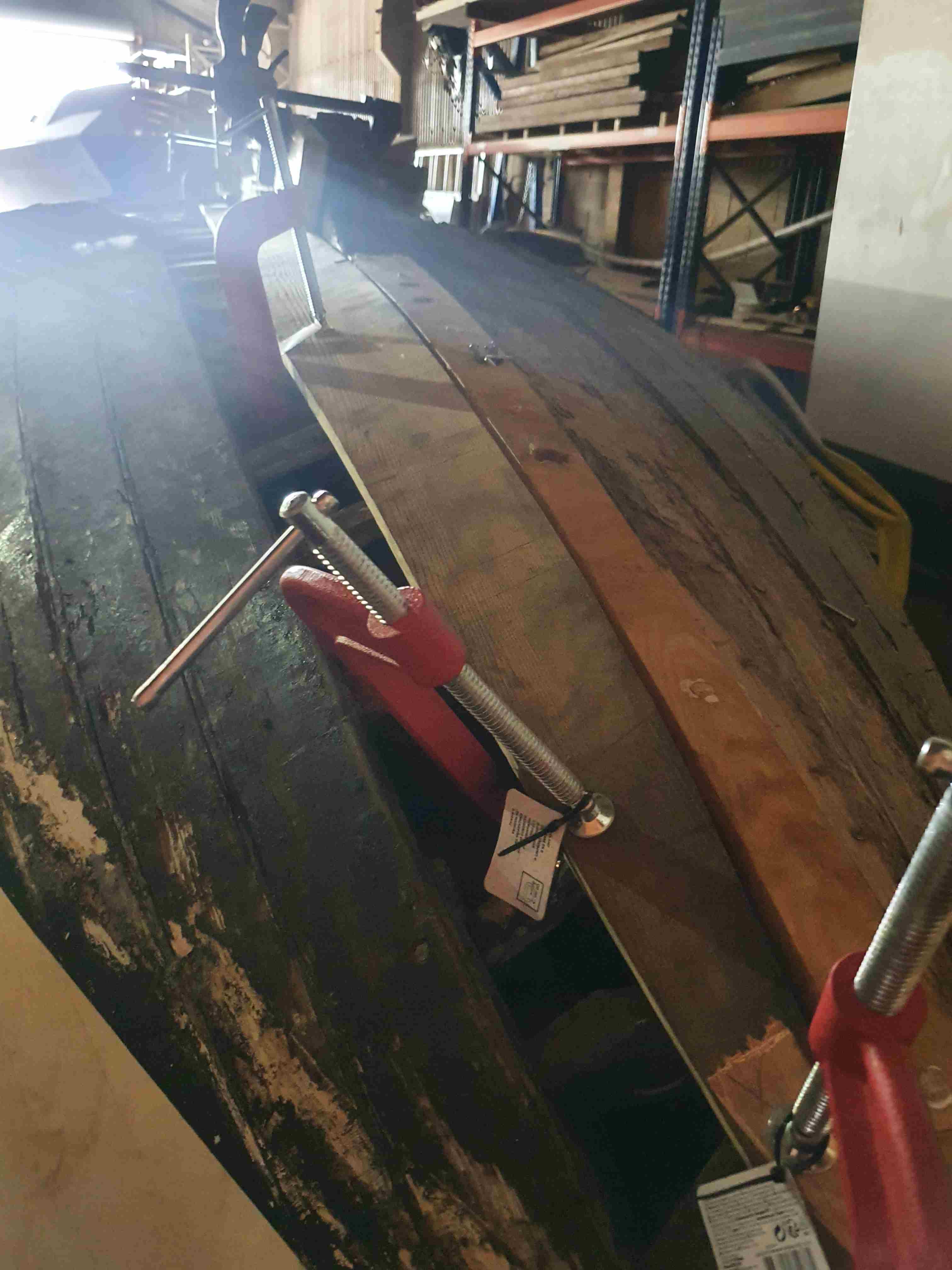

The planking begins.
